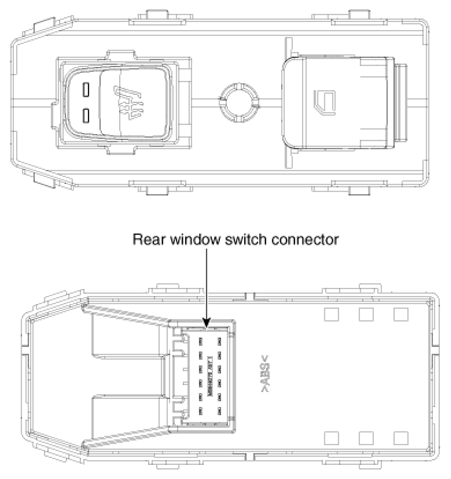

Sub Power Window Switch (Rear)
| Rear window switch connector | Pin No | Description |
|---|---|---|
| 1 | Ground | |
| 2 | Seat heater indicator power (High) | |
| 3 | Window motor (Down) | |
| 4 | Seat heater indicator power (Low) | |
| 5 | Window motor (Up) | |
| 6 | Seat heater switch | |
| 7 | Driver side switch window motor (Down) | |
| 8 | - | |
| 9 | - | |
| 10 | Driver side switch window motor (Up) | |
| 11 | Symbol lamp power | |
| 12 | Window lock power |
