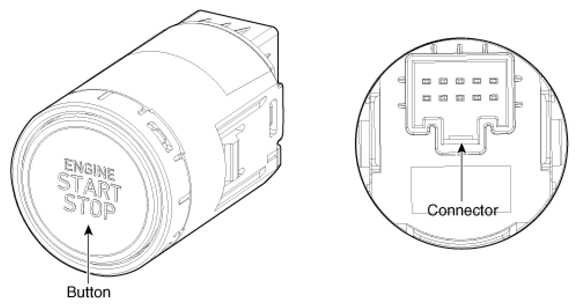

Components and Components Location: Component

Courtesy of HYUNDAI MOTOR AMERICA

Connector	Pin no	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	SSB switch 1
	2	-
	3	SSB illumination (+)
	4	Immobilizer power
	5	-
	6	Ground
	7	SSB switch 1
	8	SSB illumination (-)
	9	-
	10	Immobilizer ground
