Repair Procedures: Removal

  1. Disconnect the battery (-) terminal.

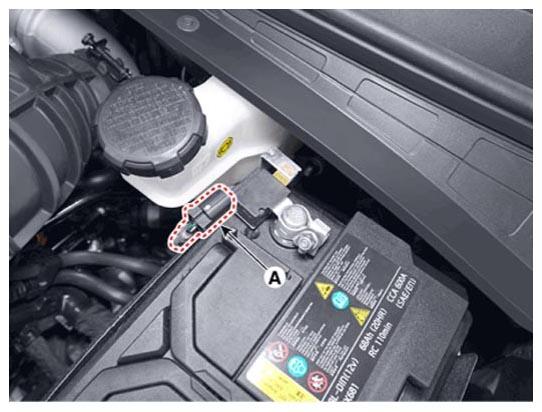

  2. Disconnect the battery sensor connector (A).
    G16771900Courtesy of HYUNDAI MOTOR AMERICA

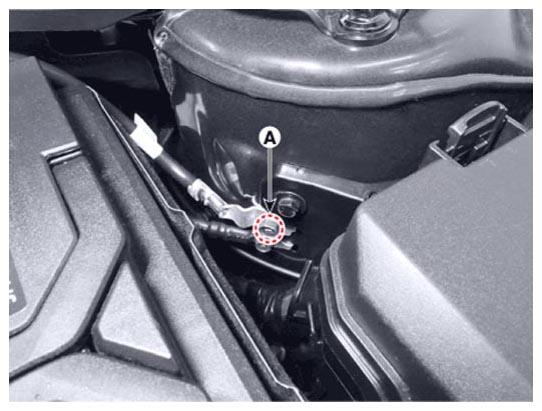

  3. After loosening the battery sensor cable mounting bolt (A), and remove the battery sensor cable.
G16771901Courtesy of HYUNDAI MOTOR AMERICA
