Component And Components Location: Components

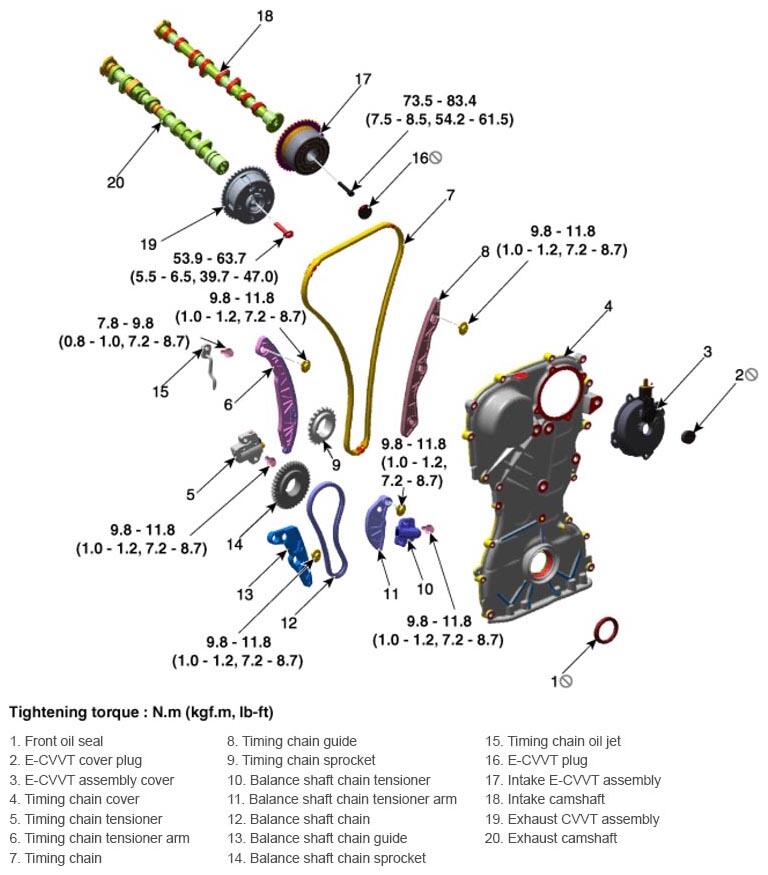

Fig 1: Timing System Components Location With Torque Specifications
G16768753Courtesy of HYUNDAI MOTOR AMERICA
