Repair Procedures: Removal
- Remove the fuel pump.
(Refer to Fuel Delivery System - "FUEL PUMP ")

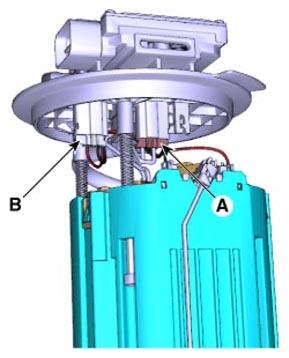

- Disconnect the fuel pump motor connector (A), and the fuel sender connector (B).

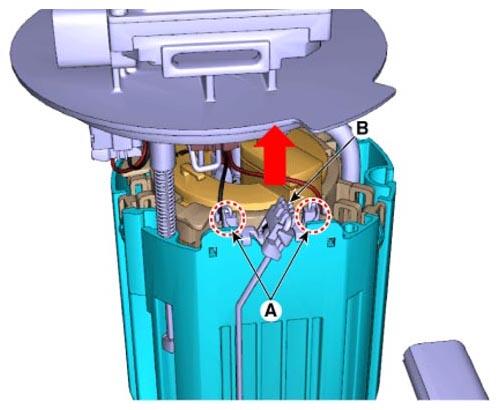

- Press the fixing hook (A) with a driver and then remove fuel sender (B) in the arrow direction.
