Components And Components Location: Components

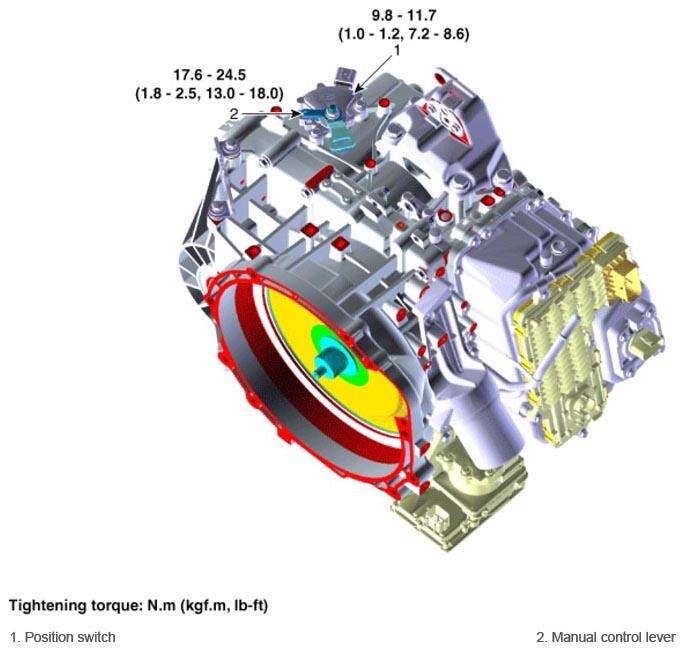

Fig 1: Position Switch Components Location With Torque Specifications
G16772531Courtesy of HYUNDAI MOTOR AMERICA
