Connector And Terminal Information

Courtesy of HYUNDAI MOTOR AMERICA

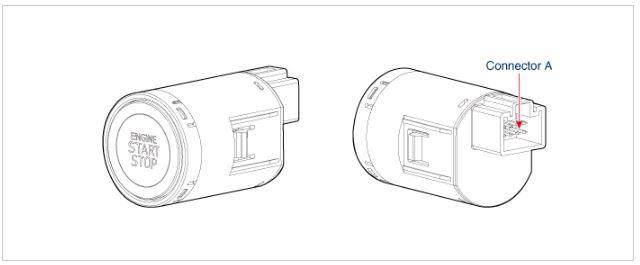

Connector A	No	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	SSB switch 1 (OUT)
	2	-
	3	SSB illumination (+)
	4	Immobilizer power
	5	-
	6	Ground
	7	SSB switch 2
	8	SSB illumination (-)
	9	-
	10	Immobilizer power
