Smart Key Status Check

  1. Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel.

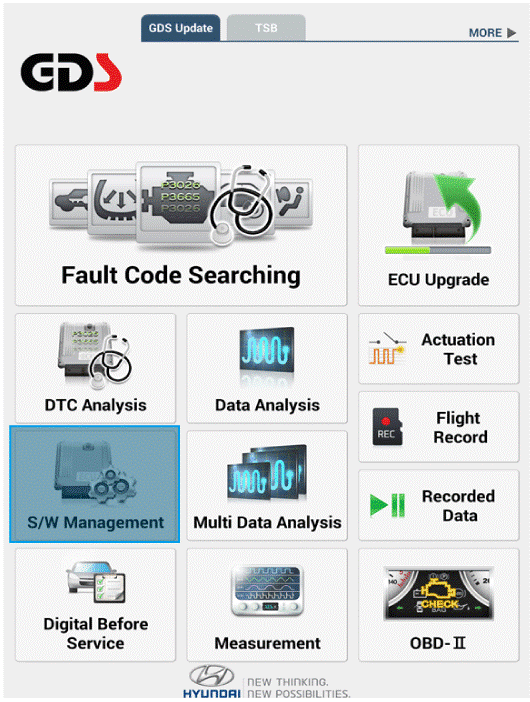

  2. Select the 'S/W Management' and 'Car model'.
    G15462857Courtesy of HYUNDAI MOTOR AMERICA

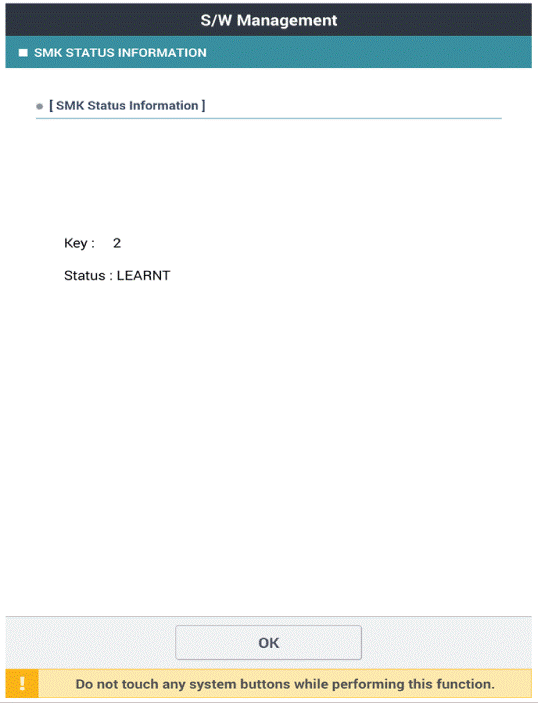

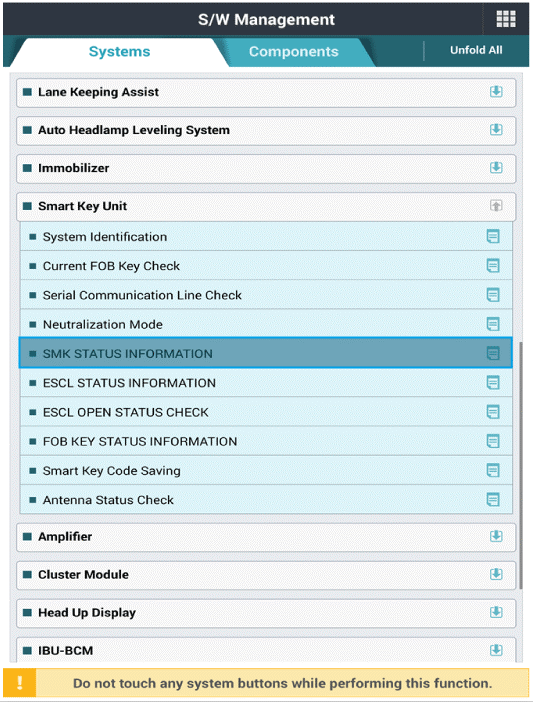

  3. Select the 'Smart Key Unit' and 'SMK STATUS INFORMATION'.
G15462858Courtesy of HYUNDAI MOTOR AMERICA
G15462859Courtesy of HYUNDAI MOTOR AMERICA
