Rear Wheel Alignment: Camber

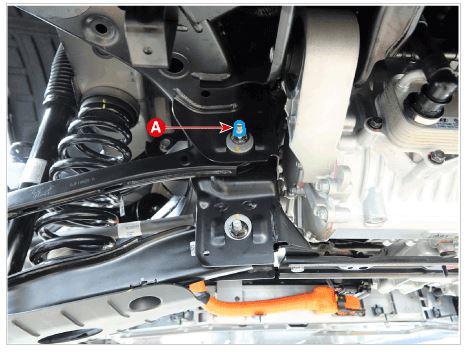

Adjust rear camber by turning the rear lower arm cam bolt (A) clockwise or counter clockwise.
Camber: -1.0° ± 0.5°
| Cam bolt | Direction of rotation | Camber |
|---|---|---|
| Left side | clockwise | Decrease (-) |
| (Driver side) | counterclockwise | Increase (+) |
| Right side | clockwise | Increase (+) |
| (Passenger side) | counterclockwise | Decrease (-) |
