Removal And Installation
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing using a remover, be careful not to damage the parts.
- Take care not to bend or scratch the trim and panels.
- Disconnect the 12V battery (-) terminal.
(Refer to Vehicle Control System - " AUXILIARY BATTERY (12V) ")
- Remove the VESS.
(Refer to Driver & Driving Assistance System - "VIRTUAL ENGINE SOUND SYSTEM (VESS) ")
- Remove the front radar.
(Refer to Advanced Driver Assistance System (ADAS) - "FRONT RADAR ")

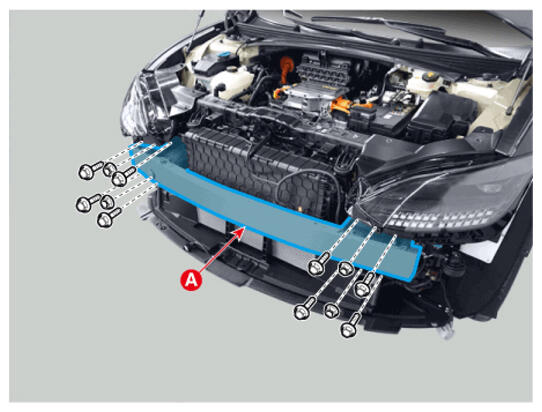

- Remove the front bumper beam assembly (A), after removing the bolts and nuts.
Tightening torque:
Nut: 13.7 - 17.7 N.m (1.4 - 1.8 kgf.m, 10.1 - 13.0 lb-ft)
Bolt: 21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb-ft)
- Install in the reverse order of removal.
