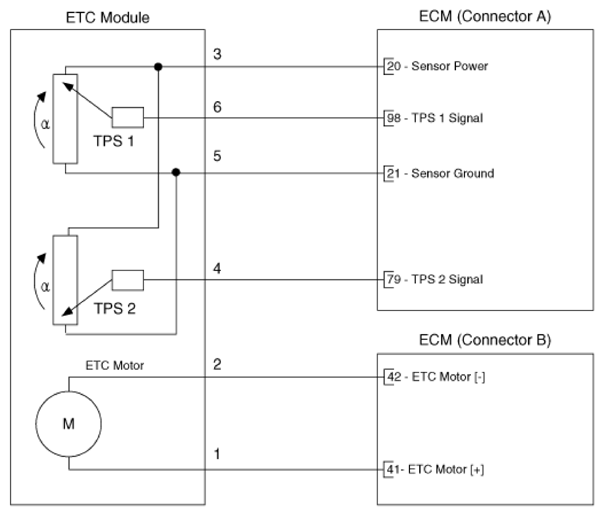

Home › Hyundai › 2024 › Kona N Line, 4WD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6 › ETC (Electronic Throttle Control) Module › Schematic Diagrams › Circuit Diagram › Notes
