Repair Procedures: Removal

Information

• In order to remove the front glass, use the tools shown In the following figure:

[Tooling Diagram]

Courtesy of HYUNDAI MOTOR AMERICA

• Insert and affix square wire (1) into the insert hole of the wire grip (2).

  Courtesy of HYUNDAI MOTOR AMERICA

  CAUTION:

  • Put on gloves to prevent hand injuries.
  NOTE:

  • Use seat covers to avoid damaging any surfaces.

1. Disconnect the negative (-) battery terminal.
2. Remove the tailgate lower trim.

   (Refer to Tailgate - "TAILGATE TRIM ")

3. Remove the rear spoiler.

   (Refer to Body Side Molding - "REAR SPOILER ")

4. Remove the rear wiper motor.

   (Refer to Body Electrical System - "REAR WIPER MOTOR ")

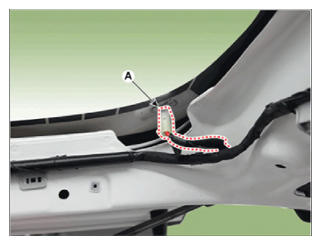

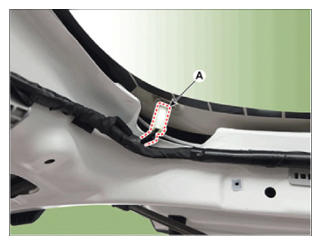

5. Disconnect the hot wire connector (A).

   [LH]

   Courtesy of HYUNDAI MOTOR AMERICA

   [RH]

   Courtesy of HYUNDAI MOTOR AMERICA

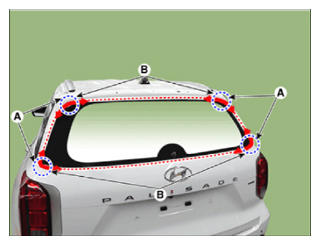

6. Cut off the sealant on the edge (B) while pulling the piano wire (A) to the left and right.
   CAUTION:

   • Put on gloves to protect your hands.
   • Heat may occur when working on the wires. Be careful not to burn your hands.
   • Be careful not to disconnect the piano wire.

   Courtesy of HYUNDAI MOTOR AMERICA

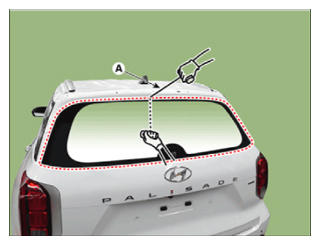

7. Put in a piano wire (A) through the corner of the tailgate window glass and insert wire grips into both ends of the wire.

   Courtesy of HYUNDAI MOTOR AMERICA

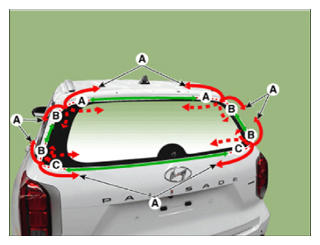

8. Cut off the sealant on (A-A), (B-B), (C-C), while pulling a piano wire (A) to the left and right.
   CAUTION:

   • Put on gloves to protect your hands.
   • Heat may occur when working on the wires. Be careful not to burn your hands.
   • Be careful not to disconnect the piano wire.

   Courtesy of HYUNDAI MOTOR AMERICA

9. Remove the tailgate glass (A) carefully.

   Courtesy of HYUNDAI MOTOR AMERICA
