Components And Components Location: Components: 4WD

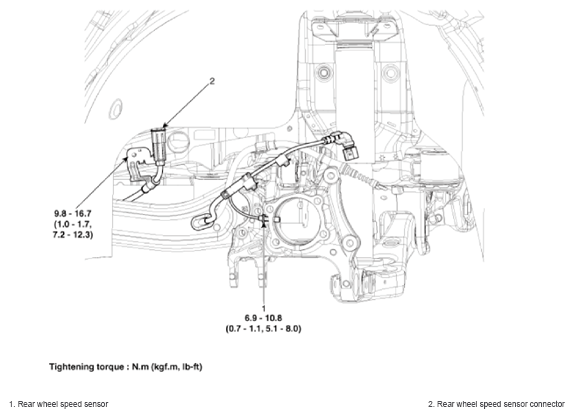

Fig 1: Rear Wheel Speed Sensor Components Location With Torque Specifications (4WD)
G15472570Courtesy of HYUNDAI MOTOR AMERICA
