Components And Components Location: Components

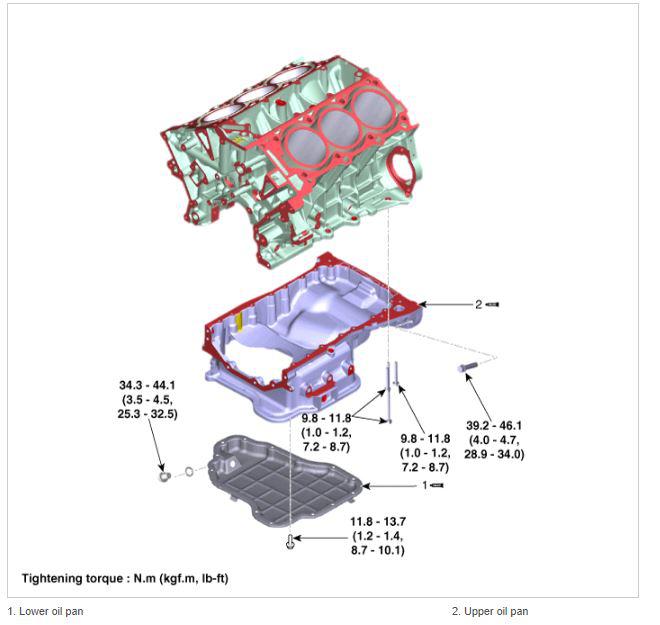

Fig 1: Oil Pan Components Location With Torque Specification
G15476790Courtesy of HYUNDAI MOTOR AMERICA
