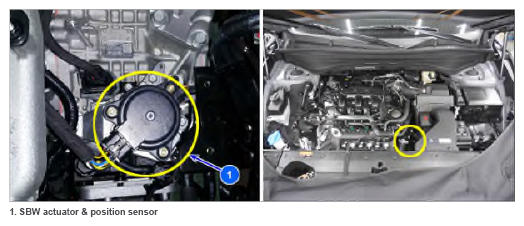

SBW actuator & position sensor
The SBW actuator & position sensor is mounted on the reducer, and the parking mechanism in the reducer is rotated according to the control of the SCU to perform the parking lock or release function and the SBW position sensor confirms the current gear position and transmits the position information to the SCU.
