SBW Control Unit Diagnosis
›
DTC U0121-83: Lost Communication With Anti-Lock Brake System (ABS) Control Module
›
Troubleshooting
›

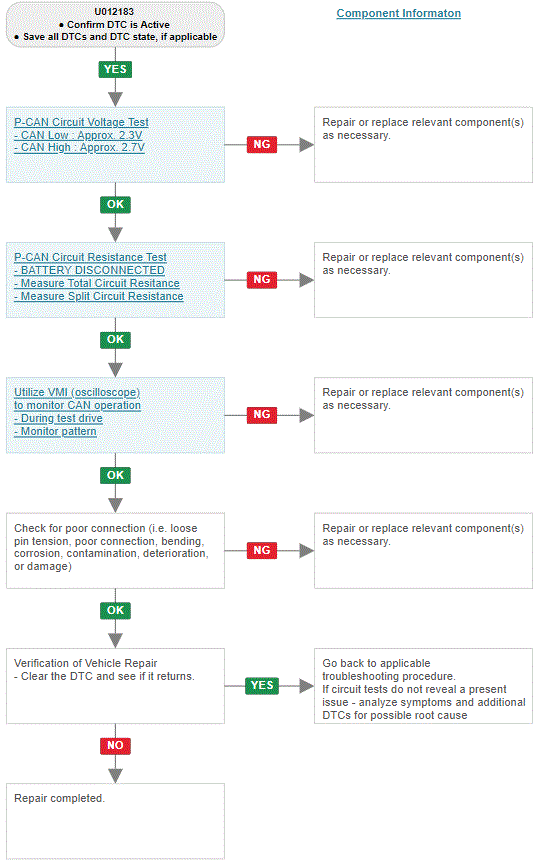

Diagnostic Flowchart
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
