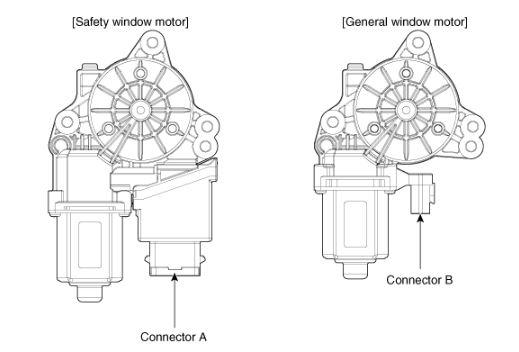

Components And Components Location: Components

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Pill	Description
1	Switch 1
2	Enable
3	Battery +
4	Ground
S	LIN
6	Switch 2

Courtesy of HYUNDAI MOTOR AMERICA
Pin	Description
1	Battery +
2	Ground
