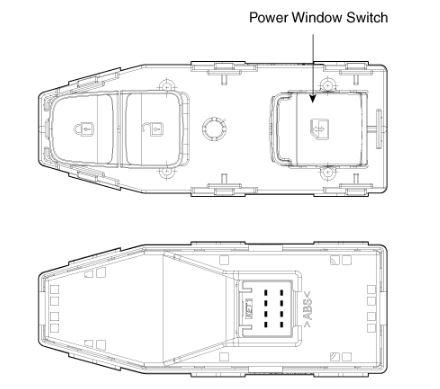

Assist Power Window Switch

Courtesy of HYUNDAI MOTOR AMERICA

Connector A	No	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Tail Lamp (-)_GND
	2	Door Unlock Switch
	3	Door Lock Switch
	4	Tail Lamp (+)_Power
	5	GND
	6	-
	7	Safety Power Window
	8	-
