Palisade Limited, 4WD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System
›
Engine Coolant Temperature Sensor (ECTS)
›
Schematic Diagrams
›

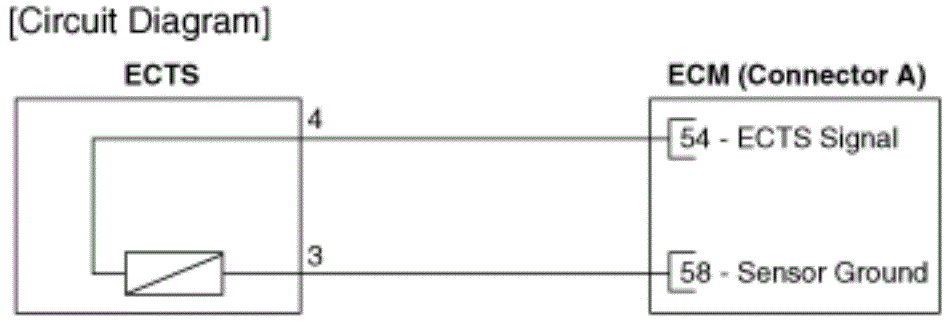

Circuit Diagram
Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
[Connection Information]
Terminal
Connected
Function
1
-
-
2
-
-
3
ECM Connector A (58)
Sensor Ground
4
ECM Connector A (54)
ECTS Signal
Courtesy of HYUNDAI MOTOR AMERICA
