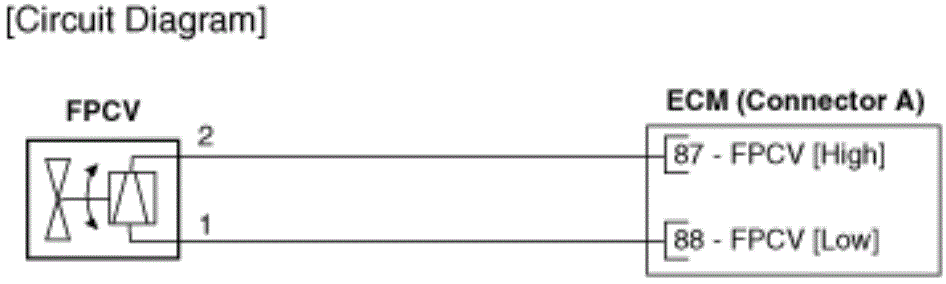

Circuit Diagram

G15477177Courtesy of HYUNDAI MOTOR AMERICA
TERMINAL AND FUNCTION DESCRIPTION

Terminal Connected Function
1 ECM Connector A (88) FPCV [LOW]
2 ECM Connector A (87)] FPCV [High]
