Engine Control System Diagnosis - 2.5T (03 Of 16)
›
DTC P013F-00: O2 Sensor Delayed Response - Lean To Rich Bank 1 Sensor 2
›
Troubleshooting
›
Diagnostic Flowchart
Diagnostic Flowchart

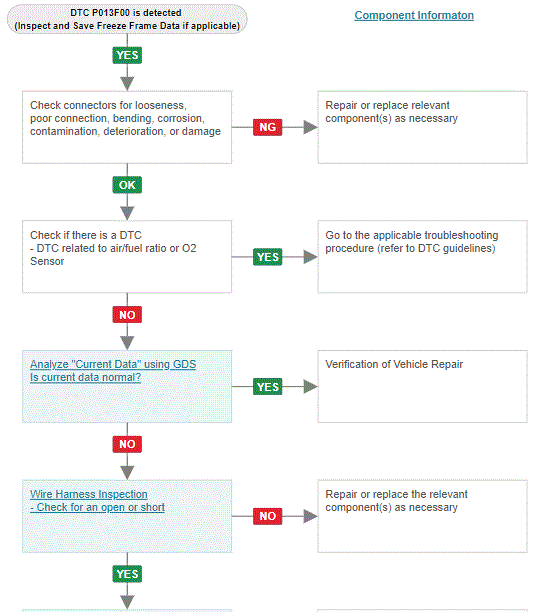

Fig 1: 1 Of 2
Courtesy of HYUNDAI MOTOR AMERICA

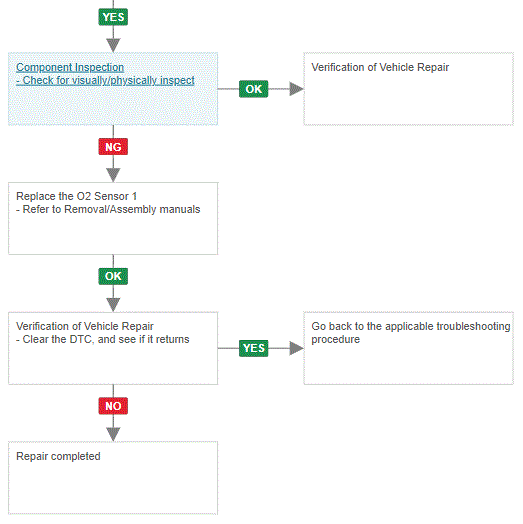

Fig 2: 2 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
