Engine Control System Diagnosis - 2.5T (09 Of 16)
›
DTC P0611-00: Fuel Injector Control Module Performance
›
Troubleshooting
›

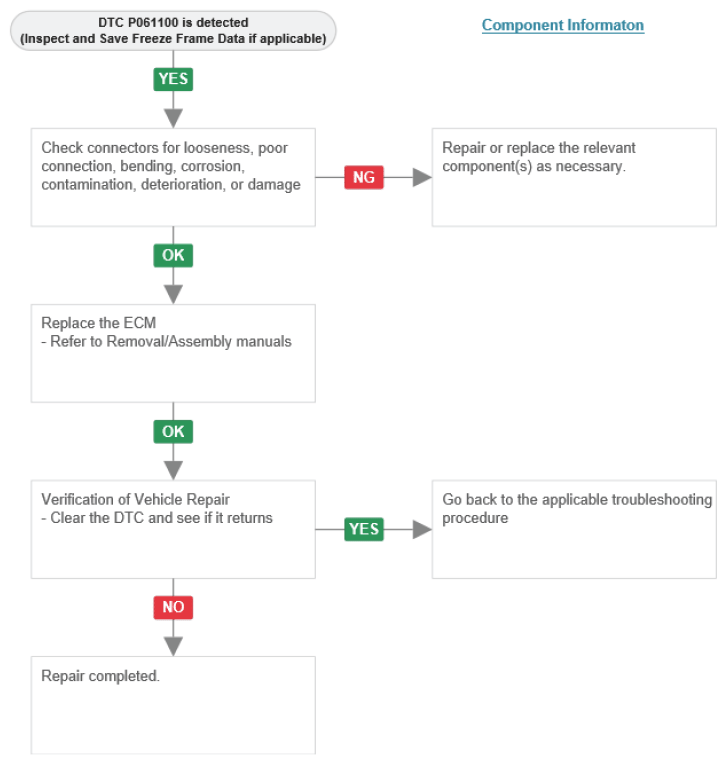

Diagnostic Flowchart
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
