Dual Clutch Control System - 2.5T
›
Position Switch
›
Repair Procedures
›
Inspection
›

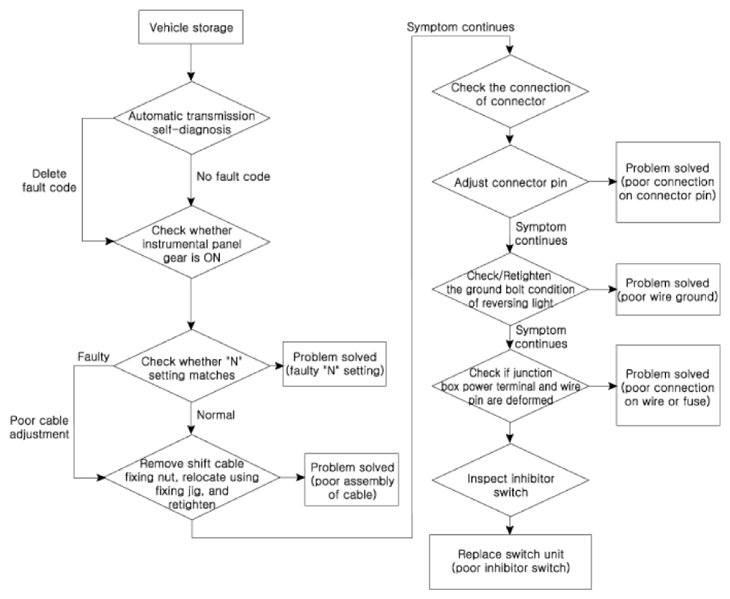

Inspection flow
Inspection flow
Courtesy of HYUNDAI MOTOR AMERICA
