Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the battery negative (-) cable.
- Lift the vehicle.
- Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

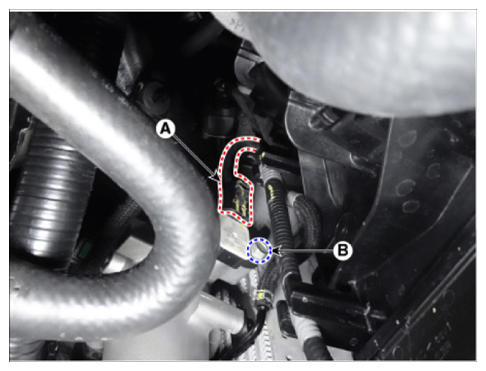

- Disconnect the boost pressure sensor connector (A).
- Remove the mounting bolts (B), and then remove the boost pressure sensor.
