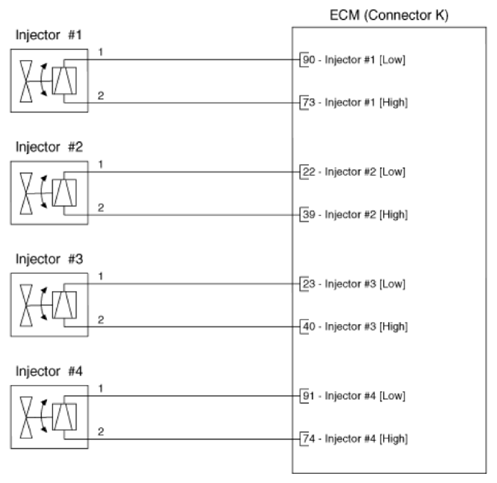

Home › Hyundai › 2024 › Santa Cruz XRT › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.5T › Injector › Schematic Diagrams › Circuit Diagram › GDI Injector
