Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the Intake Manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

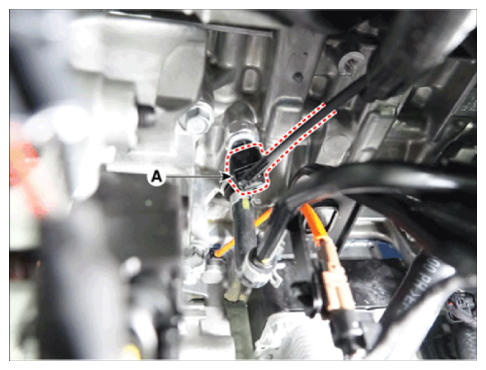

- Disconnect the oil temperature & oil pressure sensor connector (A).

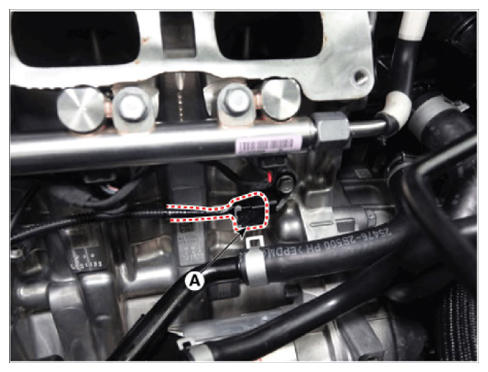

- Disconnect the engine coolant sensor connector (A).

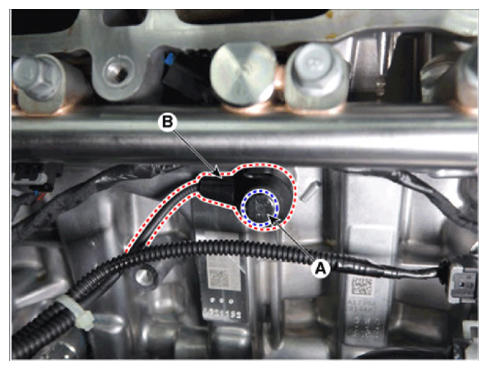

- Remove the installation bolt (A), and then remove the knock sensor (B).
Tightening torque:
16 - 24 N.m (1.6 - 2.4 kgf.m, 11.8 - 17.7 lb-ft)
