Engine Control System Diagnosis - 2.5T (11 Of 16)
›
DTC P064D-49: Internal Control Module O2 Sensor Processor Performance Bank 1
›
Troubleshooting
›

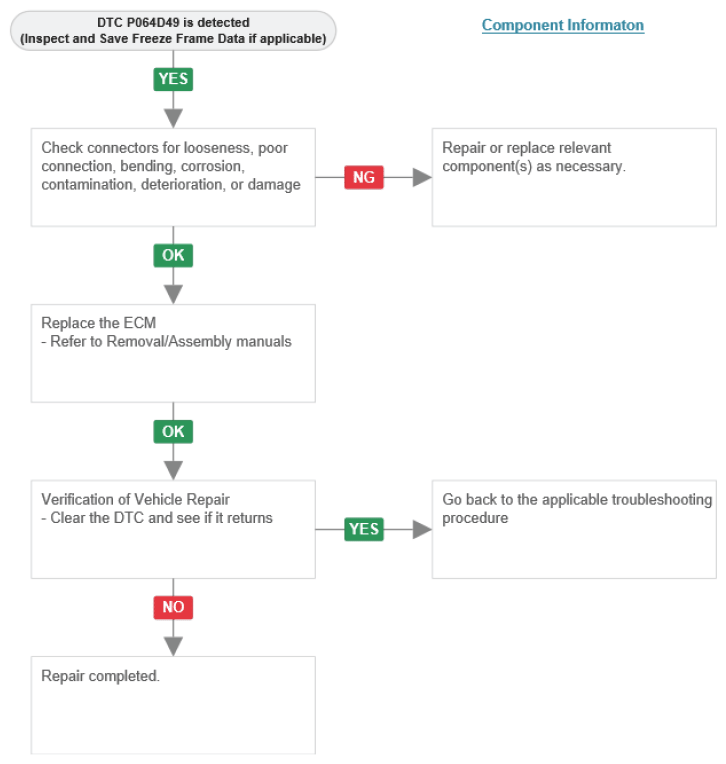

Diagnostic Flowchart
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
