Repair Procedures: Removal
- Disconnect the battery negative terminal.CAUTION:
- After disconnecting the cables, wait at least 3 minutes.
- Remove the front seat back cover.
(Refer to Body - "FRONT SEAT BACK COVER ")

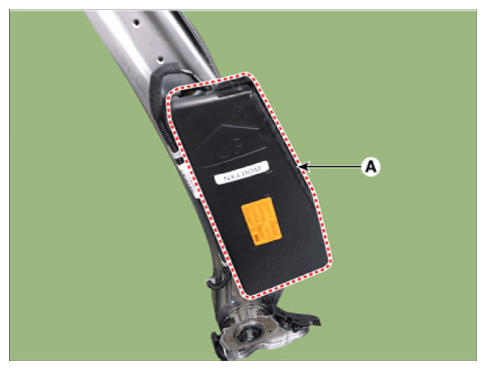

- Loosen the mounting nuts, remove the side airbag module (A).
Tightening torque:
5.9 - 7.8 N.m (0.6 - 0.8 kgf.m, 4.3 - 5.8 lb - ft)
