Repair Procedures: Installation

To install, reverse the removal procedures.

NOTE:

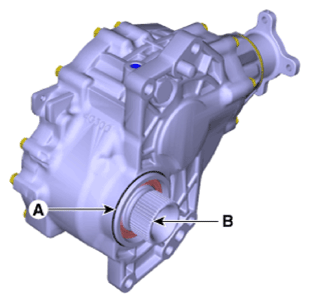

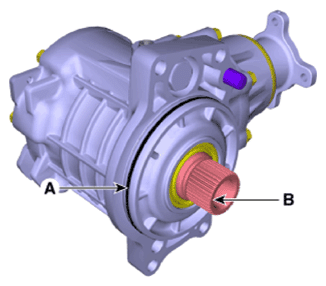

Be careful not to damage the O-ring (A). If the O-ring is damaged, replace with a new one.

Smear and cover splines (B) with molybdenum type high pressure grease.

GREASE SPL-1 equivalent (MS511-07)

[A Type]

Courtesy of HYUNDAI MOTOR AMERICA

[B Type]

Courtesy of HYUNDAI MOTOR AMERICA

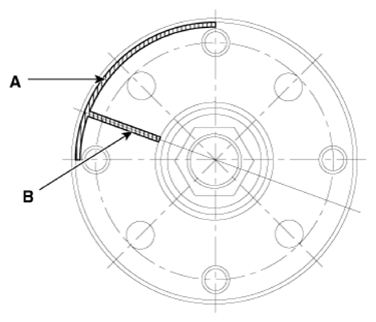

Install the propeller shaft to be near runout marking (Transfer assembly 1ea (A), propeller shaft 1ea (B) each other.

Courtesy of HYUNDAI MOTOR AMERICA
