Repair Procedures: Removal

[A Type]

1. Remove the engine room under cover.

   (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

2. Remove the front driveshaft assembly.[Right side]

   (Refer to Driveshaft and Axle - "FRONT DRIVESHAFT ")

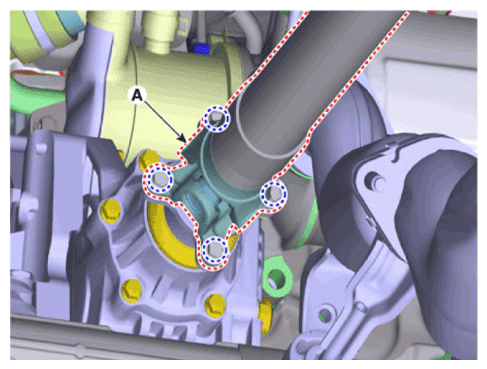

3. Remove the front propeller shaft assembly (A) from the transfer assembly.

   Tightening torque:

   49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

4. Remove the transfer case assembly.

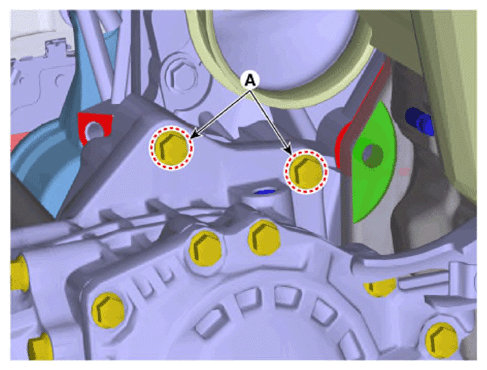

   1. Loosen the transfer assembly upper mounting bolts (A).

      Tightening torque:

      60.8 - 65.7 N.m (6.2 - 6.7 kgf.m, 44.8 - 48.5 lb-ft)

      Courtesy of HYUNDAI MOTOR AMERICA

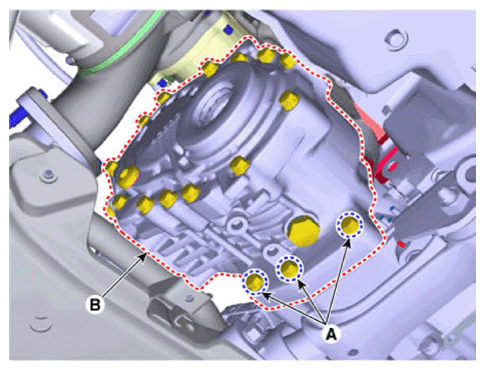

   2. Loosen the lower mounting bolts (A) and then removing the transfer case assembly (B).

      Tightening torque:

      60.8 - 65.7 N.m (6.2 - 6.7 kgf.m, 44.8 - 48.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

[B Type]

1. Remove the engine room under cover.

   (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

2. Remove the front drive shaft assembly. [Right side]

   (Refer to Driveshaft and Axle - "FRONT DRIVESHAFT ")

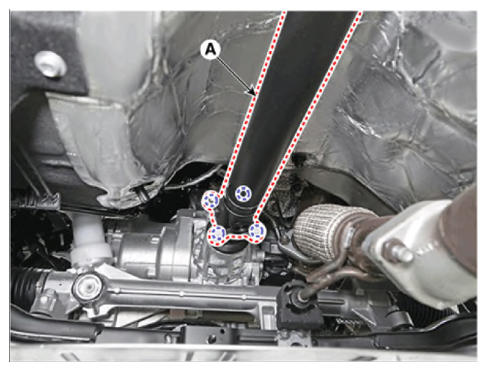

3. Remove the front propeller shaft assembly (A) from the transfer assembly.

   Tightening torque:

   49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

4. Remove the transfer case assembly.

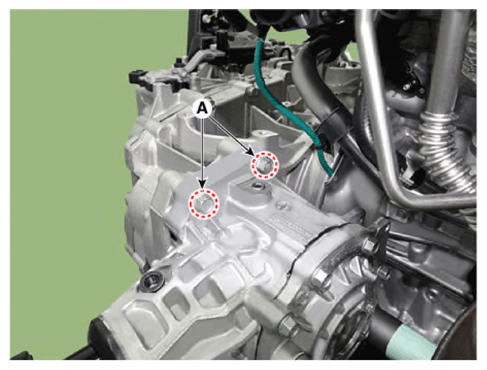

   1. Loosen the transfer assembly upper mounting bolts (A).

      Tightening torque:

      60.8 - 65.7 N.m (6.2 - 6.7 kgf.m, 44.8 - 48.5 lb-ft)

      Courtesy of HYUNDAI MOTOR AMERICA

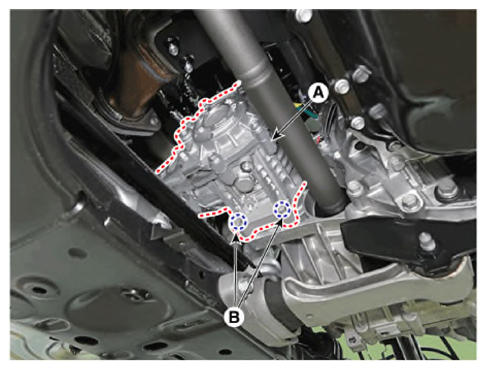

   2. Loosen the lower mounting bolts (A) and then removing the transfer case assembly (B).

      Tightening torque:

      60.8 - 65.7 N.m (6.2 - 6.7 kgf.m, 44.8 - 48.5 lb-ft)

      Courtesy of HYUNDAI MOTOR AMERICA
