Repair Procedures: Inspection

Information

Transfer oil should be inspected and refilled every 60, 000 km (40000 mile)/4 year.

Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

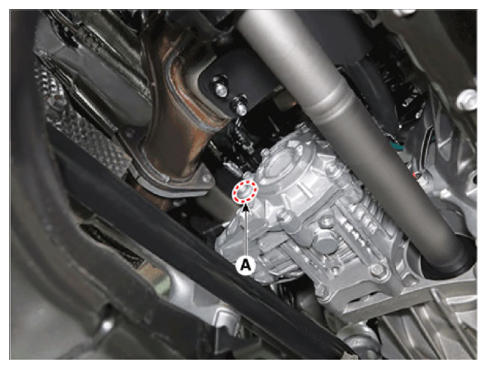

Loosen the oil filler plug (A).
[A Type]

Courtesy of HYUNDAI MOTOR AMERICA

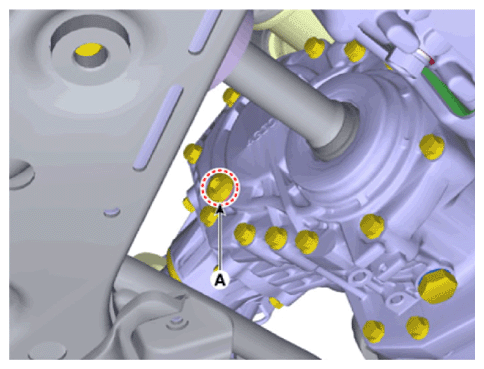

[B Type]

Courtesy of HYUNDAI MOTOR AMERICA

Check the oil level.

Information

Oil level must be up to fill the hole, if not, add oil until it runs over.

G14775063

Courtesy of HYUNDAI MOTOR AMERICA

Install the oil filler plug with new gasket.
Tightening torque:

39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)
Install the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
