Repair Procedures: Replacement
Information
| Change | Capacity | Specification | |
|---|---|---|---|
| Normal Use | Severe Use | Filled up to lower filler plug thread level. [A Type] : Filled up to lower filler plug thread 0.5L ± 0.0225L (0.13 U.S gal, 0.52 U.S qt, 0.44 Imp qt) ± (0.01 U.S gal, 0.03 U.S qt, 0.02 Imp qt) [B Type]: 0.65 L (0.17 U.S.gal, 0.69 U.S.qt, 0.57 Imp, qt) |
API GL-5, SAE 75W/85 Hypoid gear oil (SK HCT-5 75W85 equivalent) |
| No service required | 120000 km (80000 miles) | ||
Severe driving conditions
- Driving in dusty, rough roads
- Driving in mountains areas
- Driving for patrol car, taxi, commercial car or vehicle towing
- Driving over 170 Km/h
* Transfer oil should be replaced if the transfer assembly is fall into the water.
- Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
- Drain the transfer oil after loosening the drain plug (A).

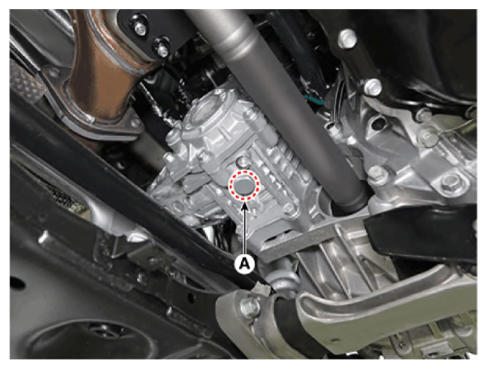

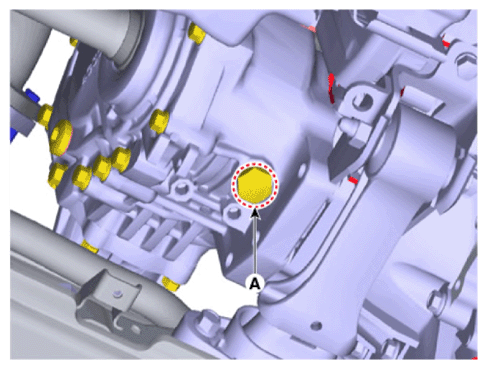

[A Type]

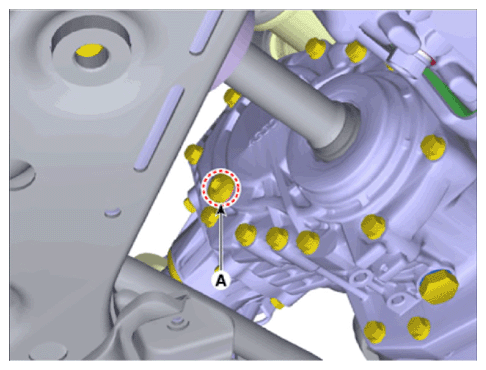

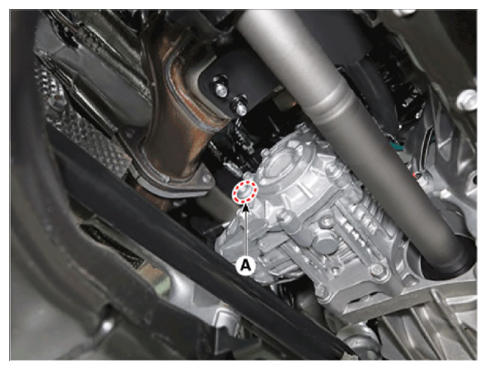

[B Type]
- Install the drain plug with new gasket.
Tightening torque:
39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)
- Refill the transfer specified oil after loosening the filler plug (A).
Specified oil: API GL-5, SAE 75W/85 Hypoid gear oil (SK HCT-5 75W85 equivalent)
Capacity: Filled up to lower filler plug thread level.
[A Type]: 0.5L ± 0.0225L (0.13 U.S gal, 0.52 U.S qt, 0.44 Imp qt) ± (0.01 U.S gal, 0.03 U.S qt, 0.02 Imp qt)
[B Type]: 0.65 L (0.17 U.S.gal, 0.69 U.S.qt, 0.57 Imp, qt)
[A Type]
[B Type]
- Install the filler plug with new gasket.
Tightening torque:
39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)
- Install the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
