Repair Procedures: Installation

  1. To install, reverse the removal procedures.
    NOTE:

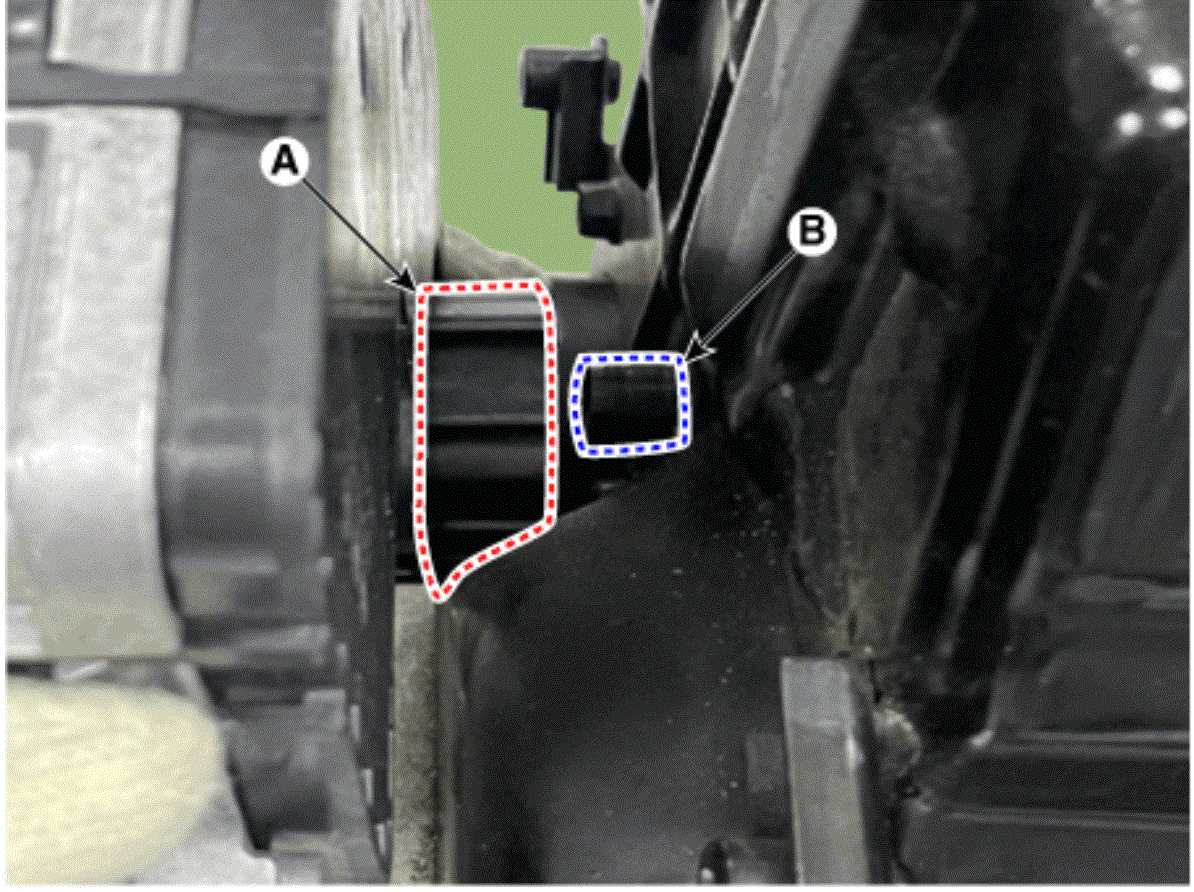

    • Make sure the TCM pin part (A), and E-module part (B) fit when installing.
      G00629429Courtesy of HYUNDAI MOTOR AMERICA

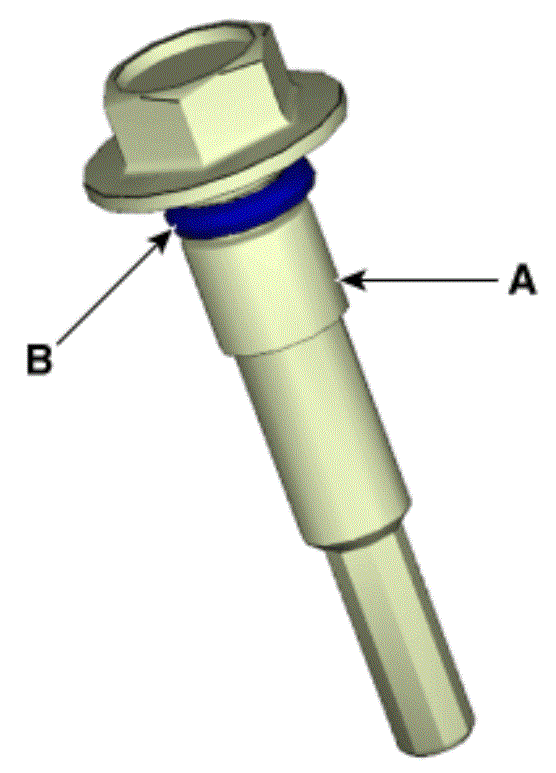

    • When reinstalling the TCM, must be replaced the TCM connector mounting bolt (A) with new one and apply the oil to the O-ring (B) before tightening it.
      G14794204Courtesy of HYUNDAI MOTOR AMERICA
  2. Perform the air bleeding procedure by using the diagnostic tool.

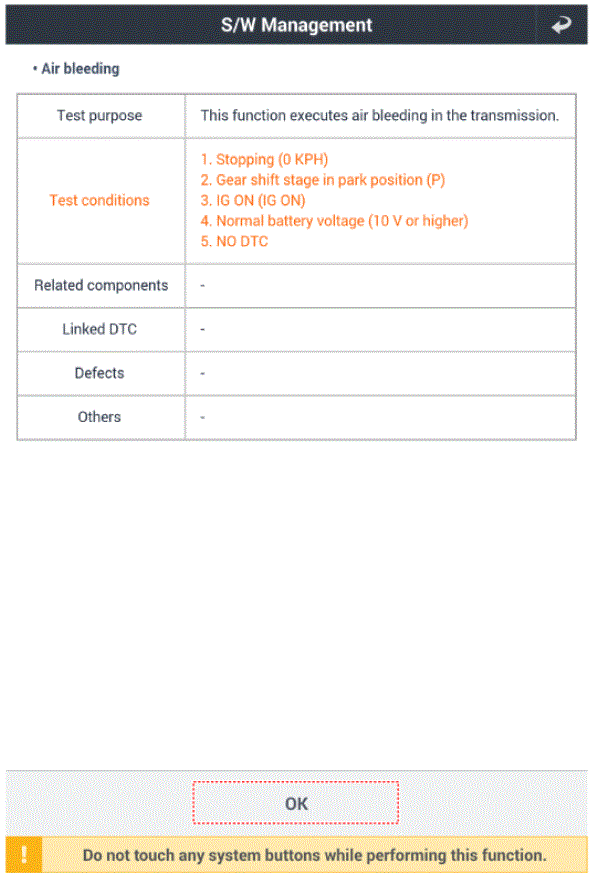

    G00629430Courtesy of HYUNDAI MOTOR AMERICA
    G00629431Courtesy of HYUNDAI MOTOR AMERICA

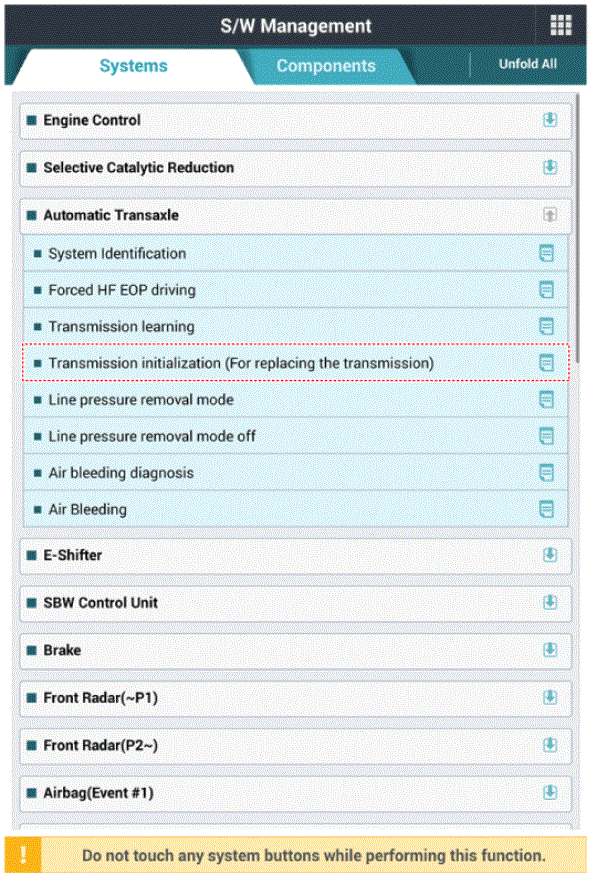

  3. Perform the factory mode exit procedure by using the diagnostic tool if replaced transmission with a new one.

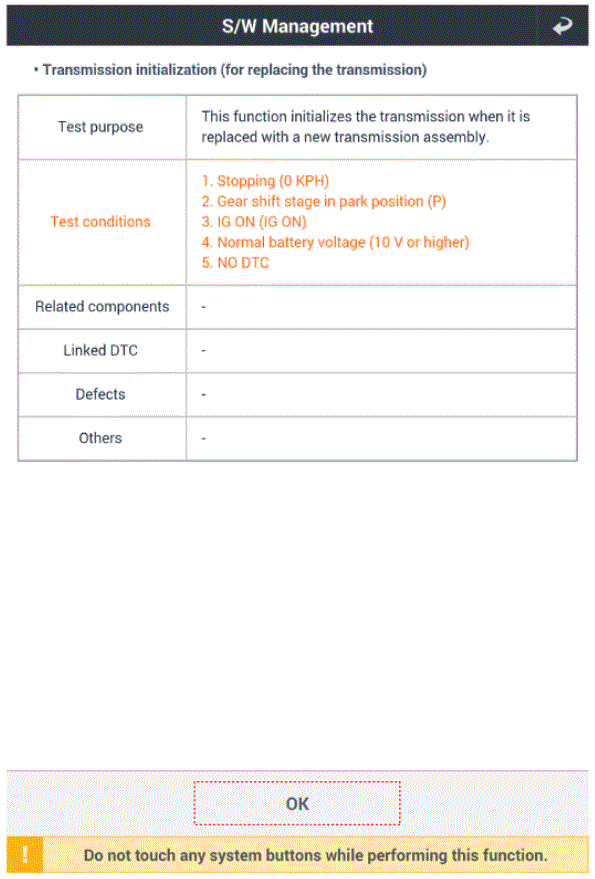

    G00629432Courtesy of HYUNDAI MOTOR AMERICA
    G00629433Courtesy of HYUNDAI MOTOR AMERICA

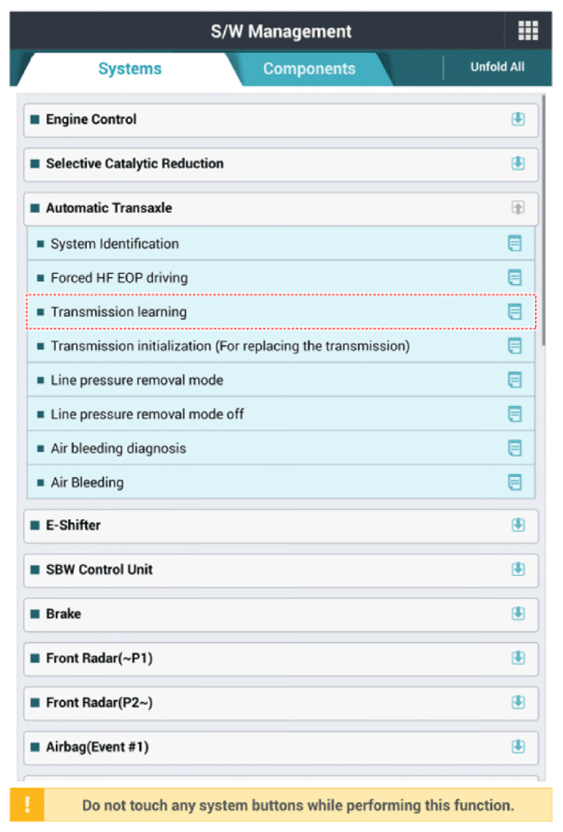

  4. Perform the clutch touch point learning procedure using the diagnostic tool after replacing TCM

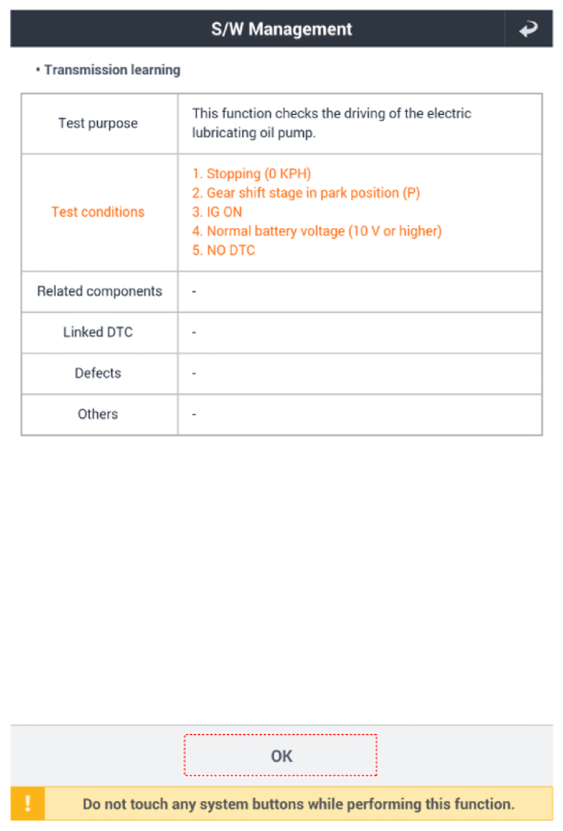

    G14794205Courtesy of HYUNDAI MOTOR AMERICA
    G14794206Courtesy of HYUNDAI MOTOR AMERICA
