Repair Procedures: Installation
- Check that the shift lever is placed in the "N" position.

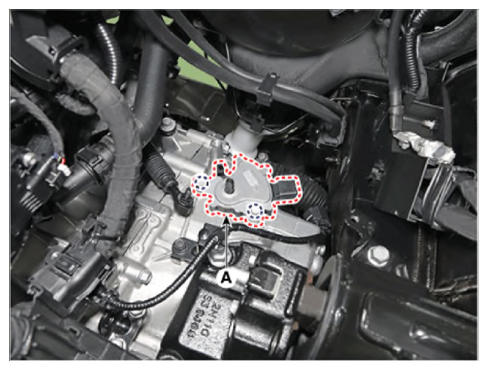

- Install the position switch (A) and then lightly tighten the position switch mounting bolts.

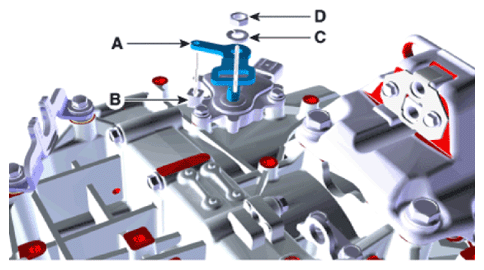

- Align the hole in the manual control lever (A) with the "N" position hole (B) of the position switch and then tighten the nut (D) and washer (C) with specified torque.
Tightening torque:
17.6 - 24.5 N.m (1.8 - 2.5 kgf.m, 13.0 - 18.0 lb-ft)

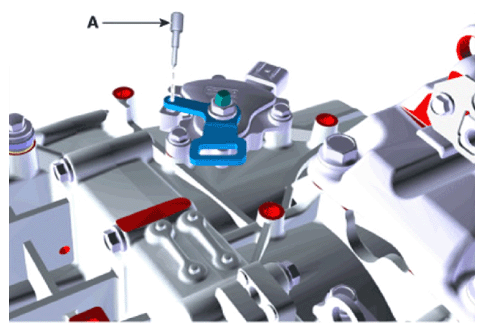

- Insert the position switch neutral fixed pin (SST No.: 09480-A3800) (A) for "N" position hole.

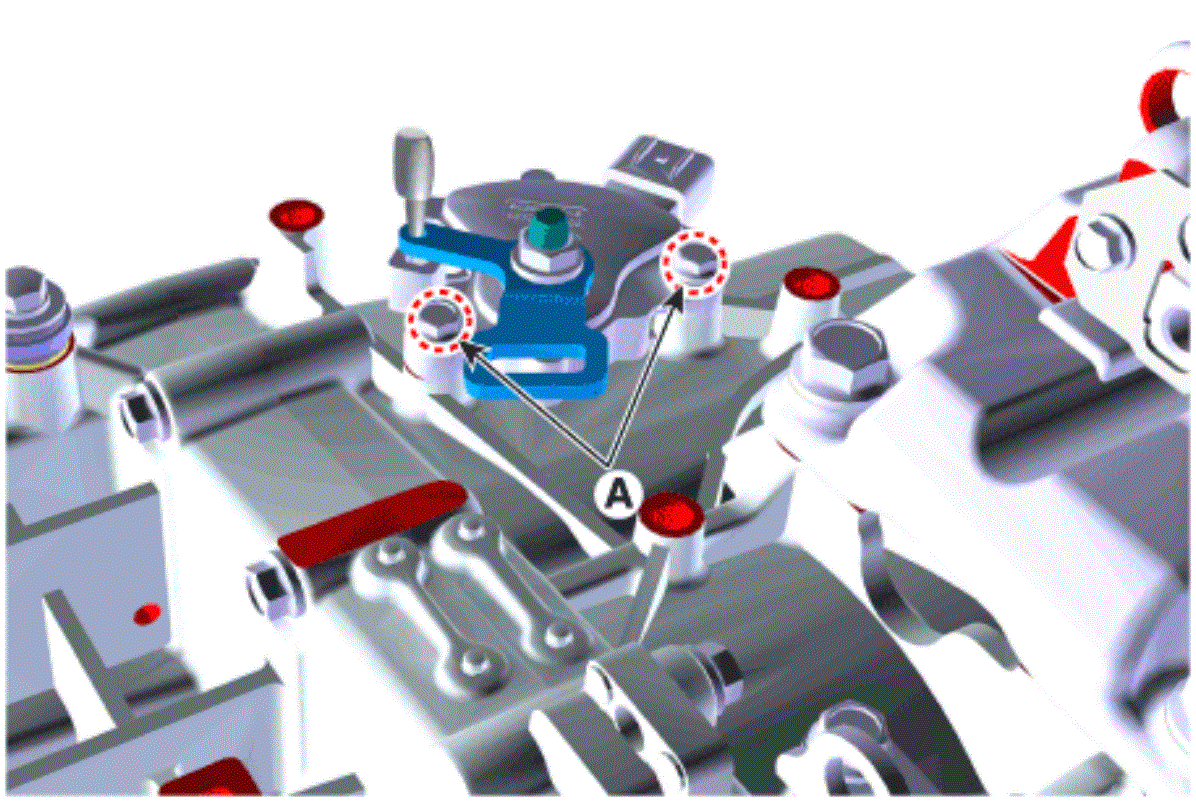

- Tighten the position switch mounting bolts
with specified torque.
Tightening torque:
9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)
- Remove the position switch neutral fixed pin (SST No.:09480-A3800) (A) from the hole.

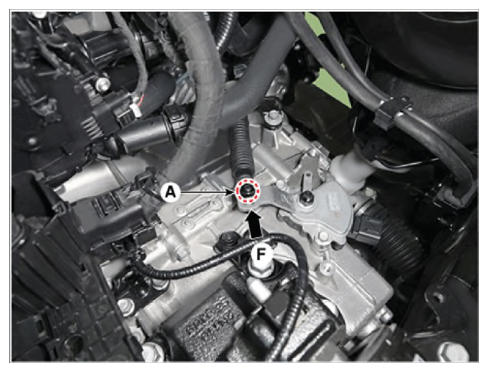

- Push shift cable (A) lightly to "F" direction shown to eliminate free play of shift cable.
Tighten the nut (B) with the specified torque.
Tightening torque:
9.8 - 14.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.8 lb-ft)

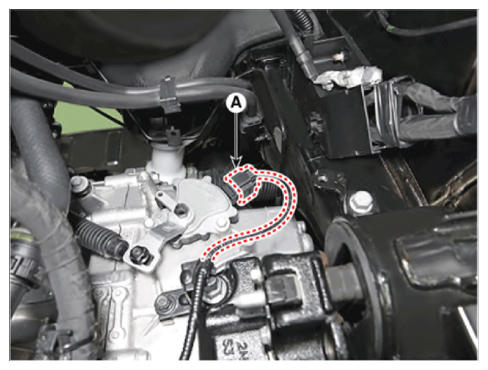

- Connect the position switch connector (A).
- Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY and BATTERY TRAY ")
- Remove the ECM.
(Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")
- Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
CAUTION:- Check that operating surely at each range of the position switch corresponding to each position of shift lever.
