Components And Components Location: Components

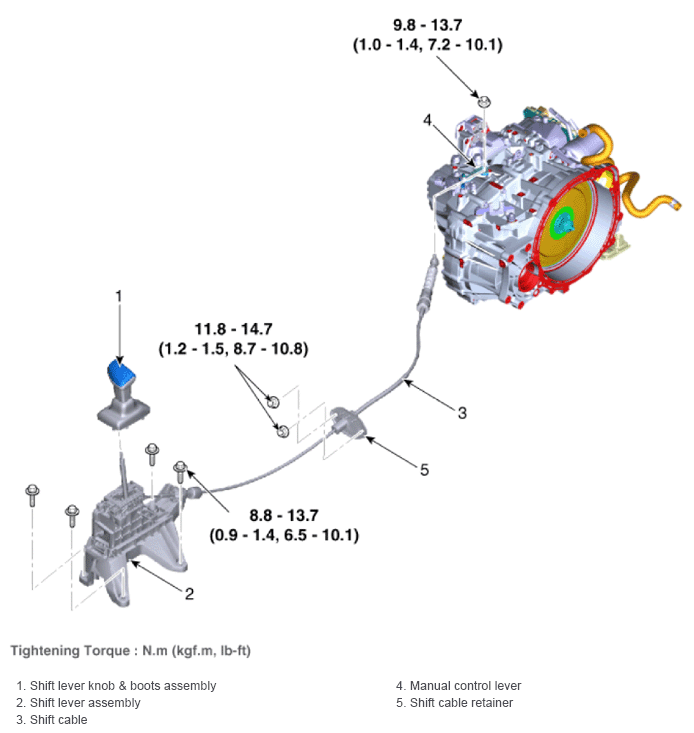

Fig 1: Shift Cable Components Location With Torque Specifications
G14794214Courtesy of HYUNDAI MOTOR AMERICA
