Chassis Domain Control Unit (CDCU): Removal
- Perform the "VARIANT CODING (BACKUP & INPUT) " using a diagnostic tool.
(Refer to Chassis Domain Control (CDC) System - "ADJUSTMENT ")
- Disconnect the 12V battery (-) terminal.
- Remove the crash pad tray.
(Refer to Body (Interior/Exterior/Electrical) - "CRASH PAD TRAY ")

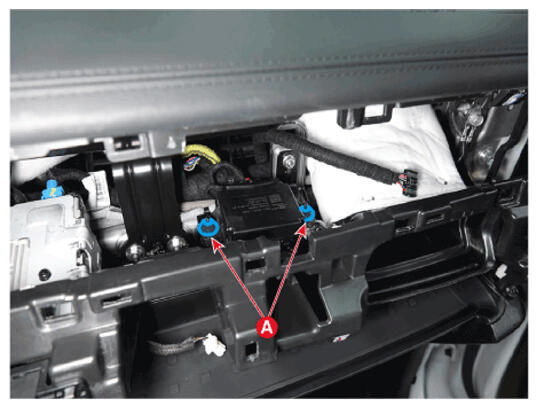

- Chassis domain control unit nuts (A).
Tightening torque:
19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)

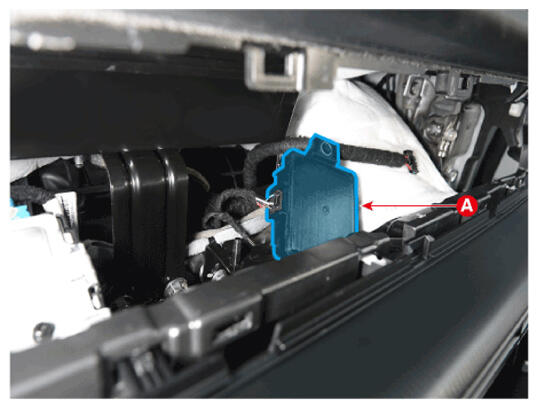

- Remove the chassis domain control unit (A) after disconnecting the connector.
