Home › Hyundai › 2024 › Santa Fe XRT › Repair and Diagnosis › Engine Performance › System › Evaporative Emission Control System (HEV) › Schematic Diagrams › Notes

Schematic Diagrams: Notes

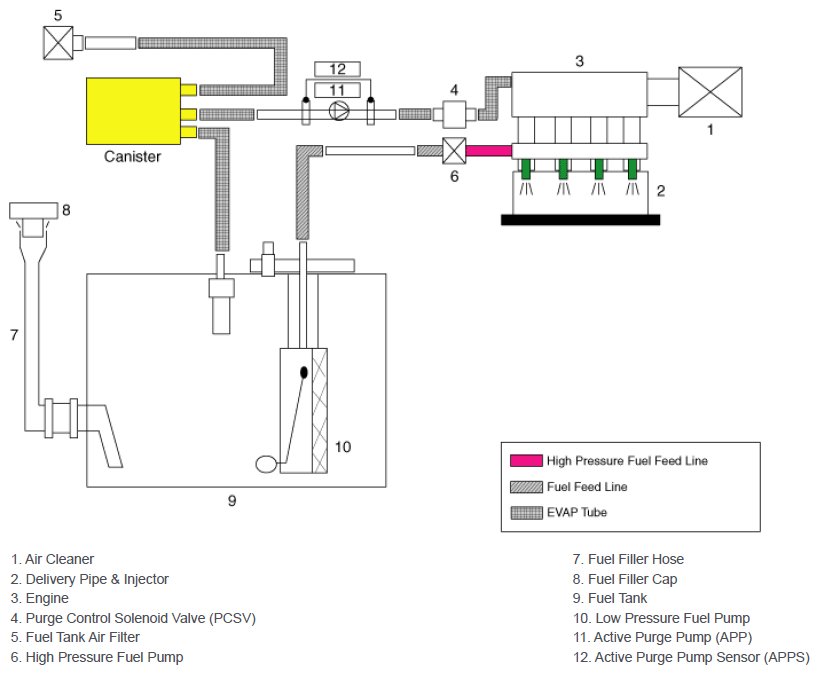

G17091019Courtesy of HYUNDAI MOTOR AMERICA
