Pressure Sensor: Installation

  1. Install in the reverse order of removal.
    NOTE:
    • Check the cleanliness of the pressure sensor before installation.

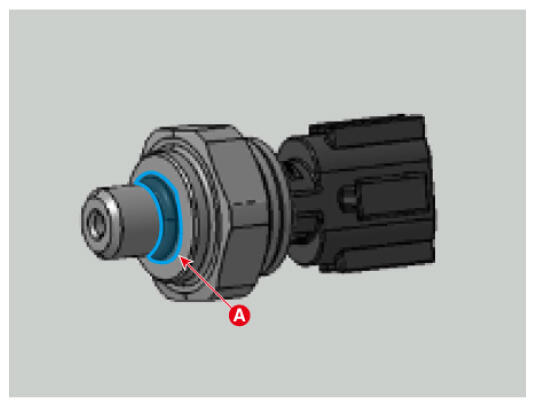

    • Check the pressure sensor O-ring (A).
      G17091638Courtesy of HYUNDAI MOTOR AMERICA

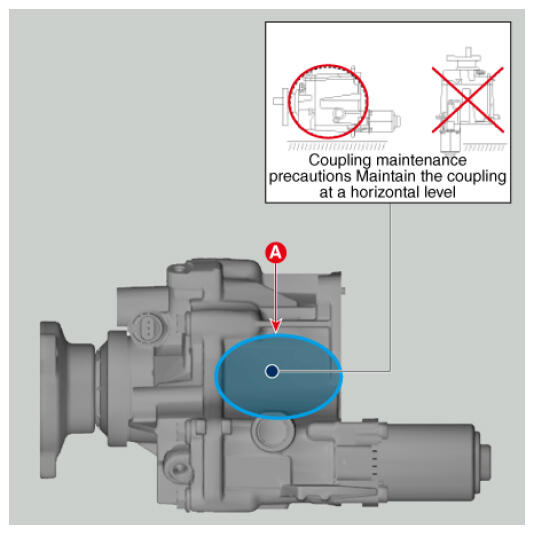

    • Keep it level with the sticker (A) on the top of the coupling.
      G17091639Courtesy of HYUNDAI MOTOR AMERICA
