Repair Procedures: Removal
- Disconnect the 12V lithium auxiliary battery (+) connector (A).
- Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE AND TRANSAXLE ASSEMBLY ")
- Disconnect the crankshaft position sensor connector.

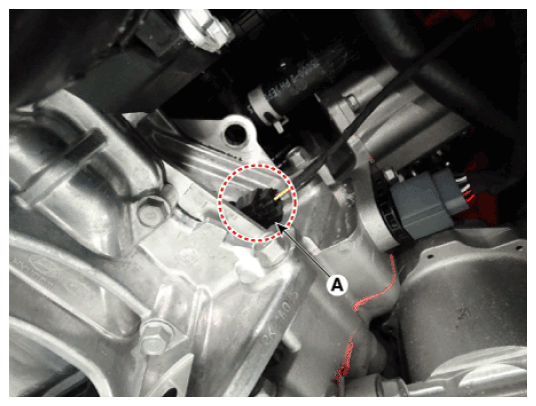

- Remove the crankshaft position sensor (A) after loosening mounting bolt.
Crankshaft position sensor mounting bolt:
9.8-11.8 N.m (1.0-1.2 kgf.m, 7.2-8.7 lb.ft)
