Repair Procedures: Removal
- Disconnect the 12V lithium auxiliary battery (+) connector (A).
- Remove the air duct and air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

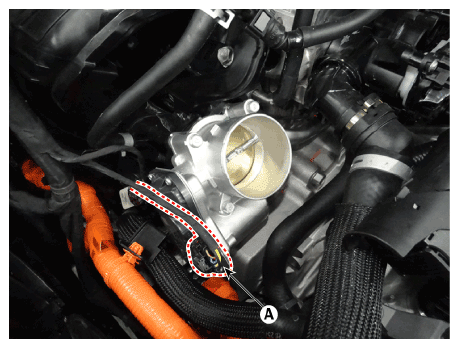

- Disconnect the ETC module connector (A).

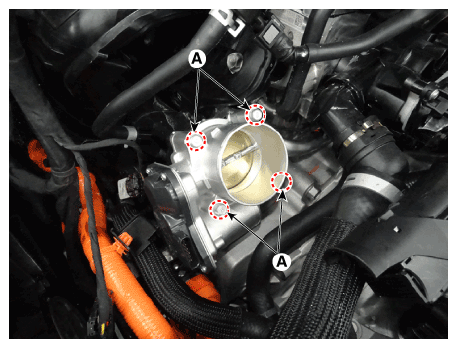

- Remove the ETC module from the engine after loosening mounting bolt (A).
ETC Module mounting bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
