Repair Procedures: Removal
- Disconnect the 12V lithium auxiliary battery (+) connector (A).
- Lift the vehicle.
- Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

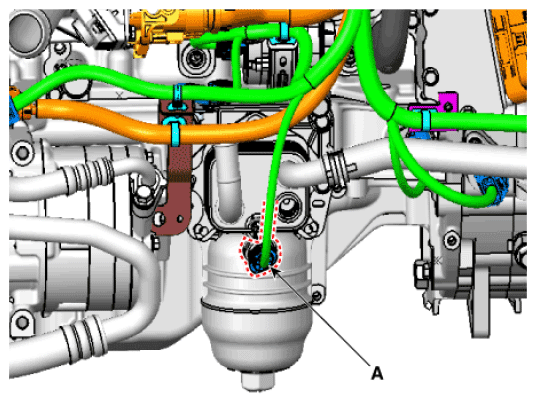

- Remove the oil pressure & oil temperature sensor after disconnect the oil pressure & oil temperature sensor connector (A).
Oil pressure & oil temperature sensor:
14.7-21.6 N.m (1.5-2.2 kgf.m, 10.8-15.9 lb.ft)
