Repair Procedures: Removal

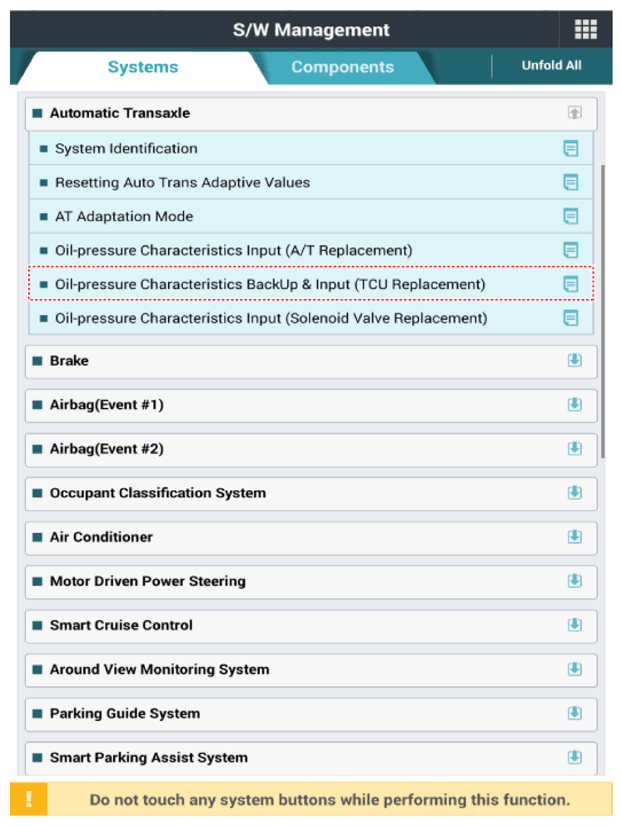

- Perform the oil pressure characteristics backup procedure using the diagnostic tool when replacing with a new TCM.
- Disconnect the 12V battery (Lithium Polymer Type) (+) connector.

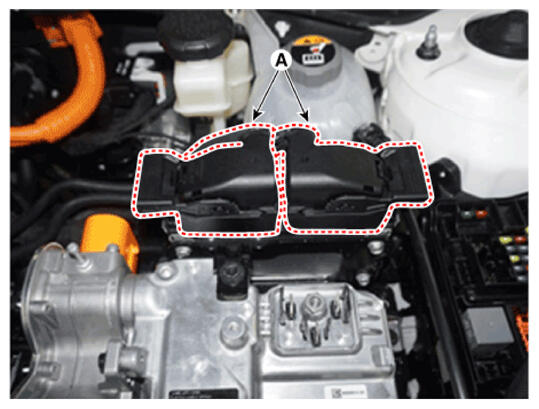

- Disconnect the TCM connector (A).

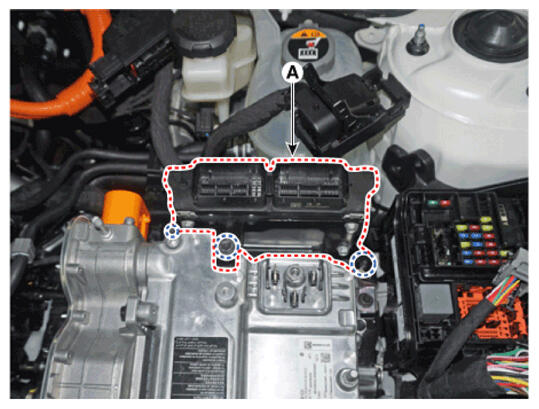

- Loosen the bolt and then removing the TCM (A)
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
