IAU-IBU Learning method

Learning between IAU-IBU is carried out to set up the digital key system.

CAUTION:

When learning IAU-IBU, the digital key information previously stored in the vehicle is deleted.
It is used after re-enrolling the digital key.

Turn the power switch "OFF" and connect the diagnostic tool.
Turn the power switch "ON" and the motor "OFF".

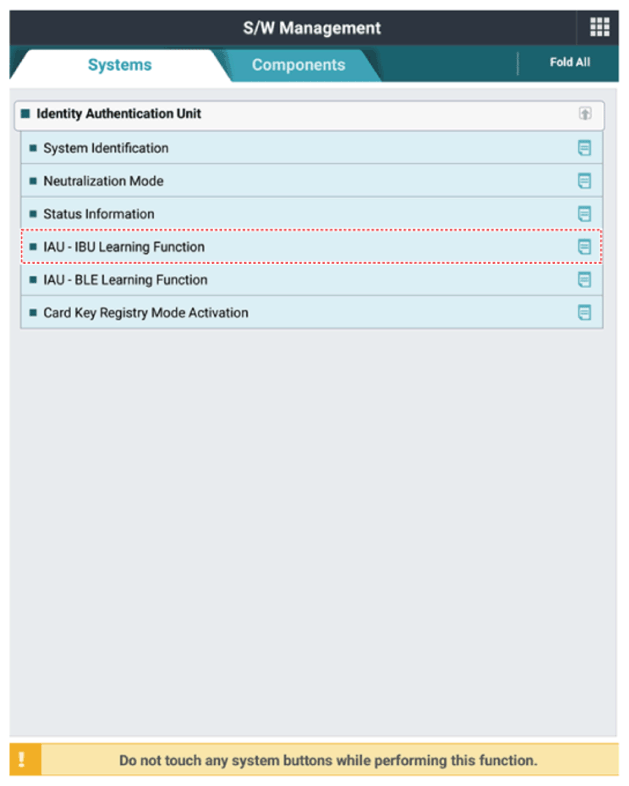

Select the 'S/W Management' and 'Learning Mode'.

Courtesy of HYUNDAI MOTOR AMERICA
Select IAU-IBU learning and perform the procedure according to the required conditions.
