Repair Procedures: Inspection

Check the signal waveform of the CMPS and CKPS using the diagnostic tool.
Specification : Refer to "Figure below"

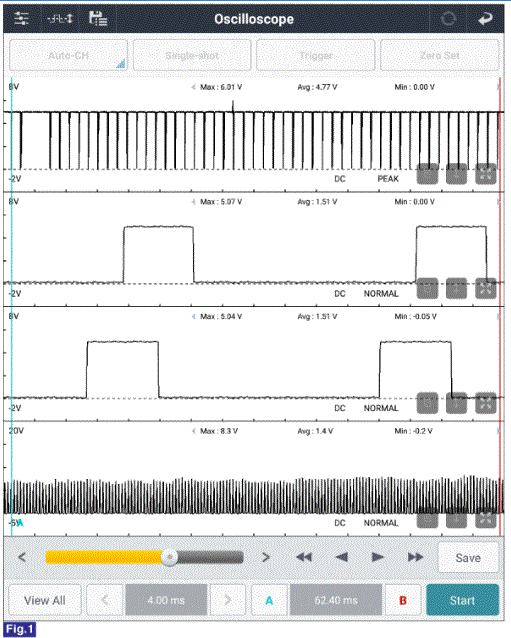

Fig 1: Fig.1) Normal signal waveform of CKPS, CMPS-In/Ex and E-CVVT motor at engine idle
Courtesy of HYUNDAI MOTOR AMERICA
