Component Inspection

  1. Check the rail pressure sensor waveform using the diagnosis tool.

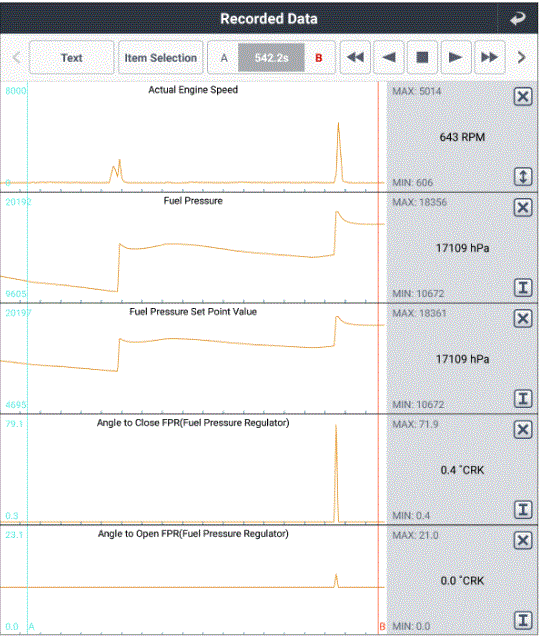

    Specification:  Refer to "Figure below"

    G00644048Courtesy of HYUNDAI MOTOR AMERICA
