Diagnostic Flowchart

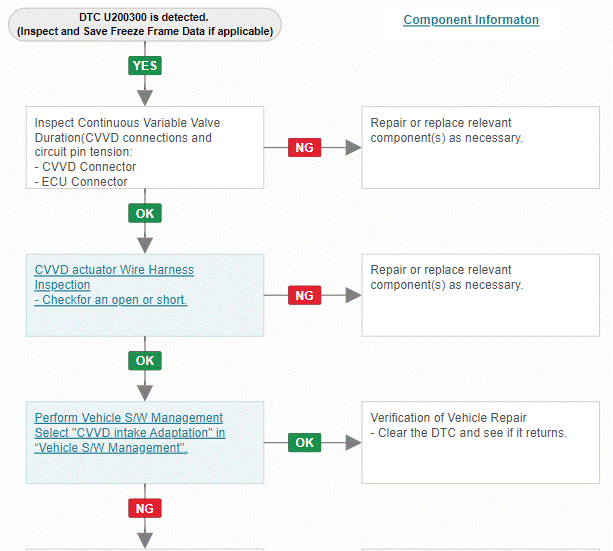

Fig 1: (1 Of 2)

G16170684

Courtesy of HYUNDAI MOTOR AMERICA

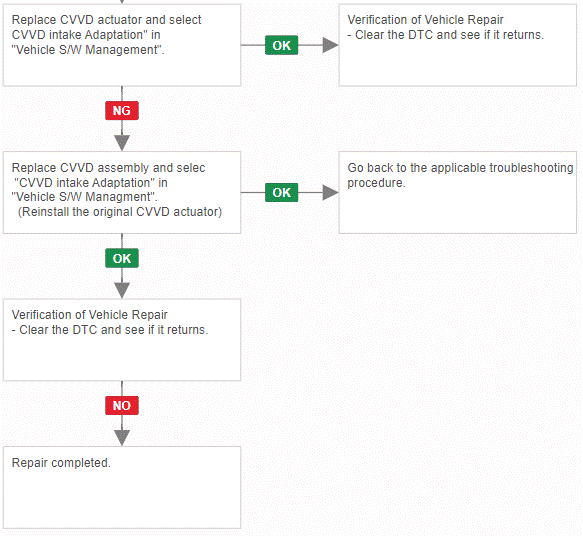

Fig 2: (2 Of 2)

G00665116

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

After removing the Head Cover, CVVD assembly, CVVD Actuator, Conduct the "CVVD actuator intake adaptation".
"CVVD intake adaptation" will be necessary when the worker remove the battery or CVVD connector while the engine is running
