Throttle Position Sensor (TPS) [Integrated into ETC Module]
Throttle Position Sensor (TPS) [Integrated into ETC Module]
Type: IC rotate sensor type

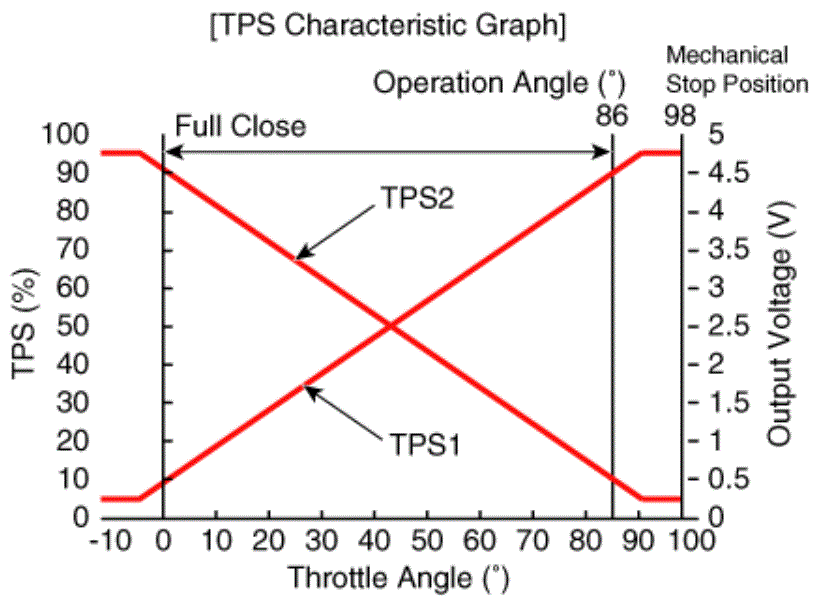

Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
