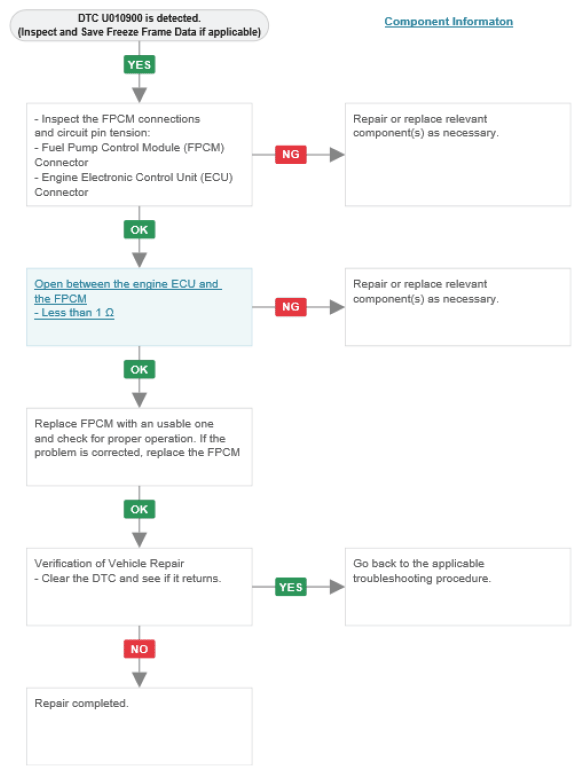

Home › Hyundai › 2024 › Tucson Plug-In Hybrid SEL › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis (PHEV) (8 Of 8) › DTC U0109-00: Lost Communication With Fuel Pump Control Module › Troubleshooting › Diagnostic Flowchart
