Smart Key Unit
- Disconnect the negative (-) battery terminal.
- Remove the glove box.
(Refer to Body - "GLOVE BOX HOUSING ")

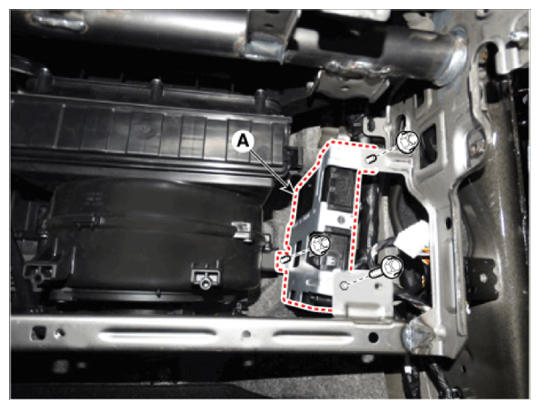

- Remove the smart key unit (A) after loosening the nuts.

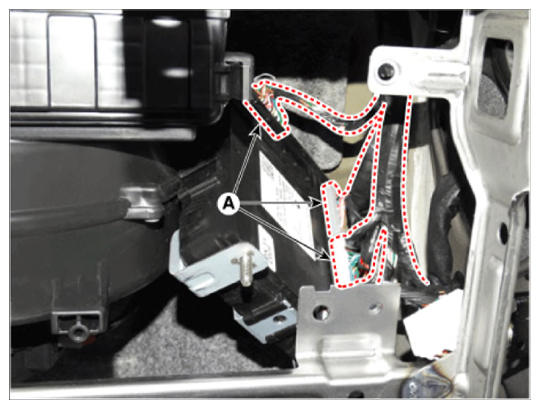

- Remove the smart key unit the connectors (A).
(Refer to Body - "GLOVE BOX HOUSING ")
