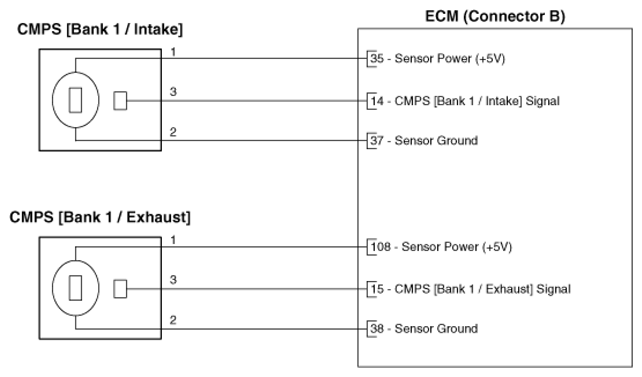

Home › Hyundai › 2025 › Elantra Limited › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L (Except HEV) › Camshaft Position Sensor (CMPS) › Schematic Diagrams › Circuit Diagram › Notes
